B660-EXT444-100AS

Extender HDMI con ARC

Especificaciones:

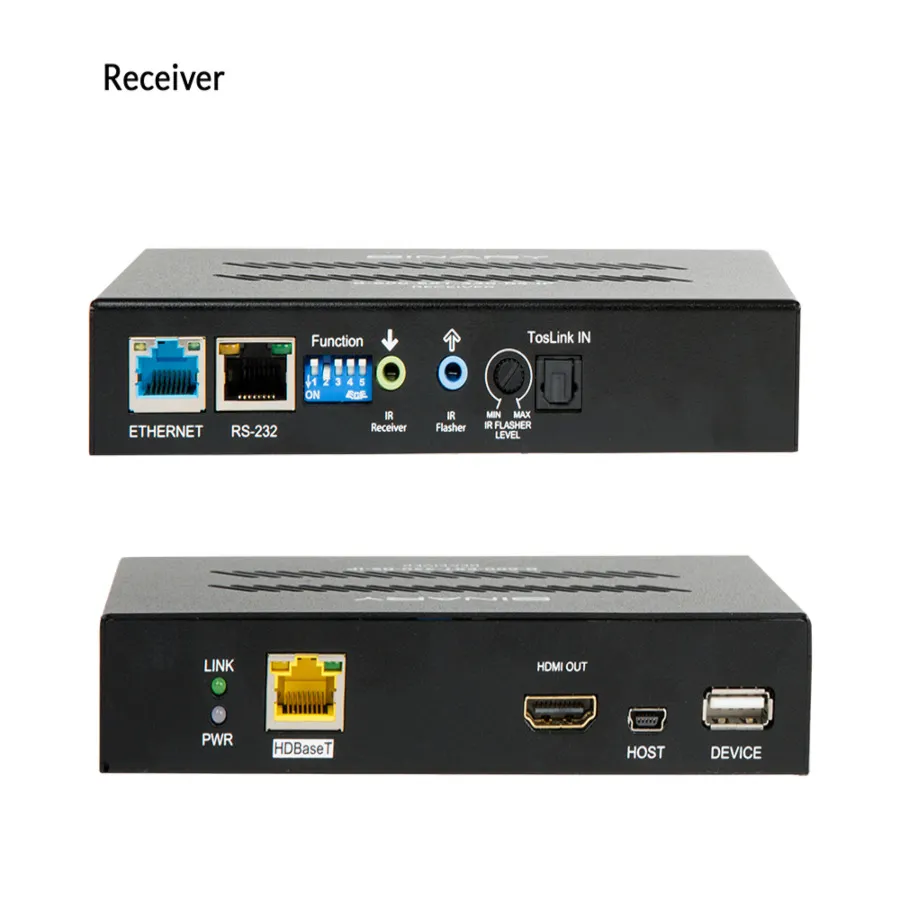

Tipo de conector: Transmitter: 1x HDMI IN, 1x HDBT OUT, 1x HDMI OUT, 1x IR Receiver,1x IR Flasher, 1x RS-232 (RJ45), 1x AUDIO OUT (3.5mm analog audio out), 1x SPDIF OUT, 2x ETHERNET, 1x DC 12V IN Receiver: 1x HDMI OUT, 1x HDBT IN, 1x IR Receiver, 1x IR Flasher, 1x RS-232

Formatos soportados: HDMI IN/OUT: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD™, Dolby Atmos™, DTS-HD Master Audio™ and DTS:X™ 3.5mm Analog AUDIO OUT: PCM 2.0 SPDIF: PCM 2.0, Dolby Digital™, DTS 5.1™

Distancia de transmisión: Cat 5e/6 100m/330ft Up to 1080P@60Hz 36bpp-70m/230ft 1080P@60Hz 48bpp, Cat 6a/7 100m/330ft-4K@30Hz 24bpp 4K@60 4:2:0 24bpp 4K@60 4:4:4 24bpp, HDMI Recommended max length of 3m/10ft All supported resolutions

Resolución VESA: 800x600, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1200, 2560x1440, 2560x1600

Control: IR, RS-232, CEC, DIP Switches

Temperatura de operación: 0°C to 40°C (32°F to 104°F)

Tasa de transferencia de datos: HDMI IN & HDMI OUT: 18Gbps

Fuente de poder: 12VDC, 3A

Dimensiones(An x Al x Pr): 7.64 in(19.4cm) x 0.61 in.(1.5cm) x 4.33 in(10.9cm)
