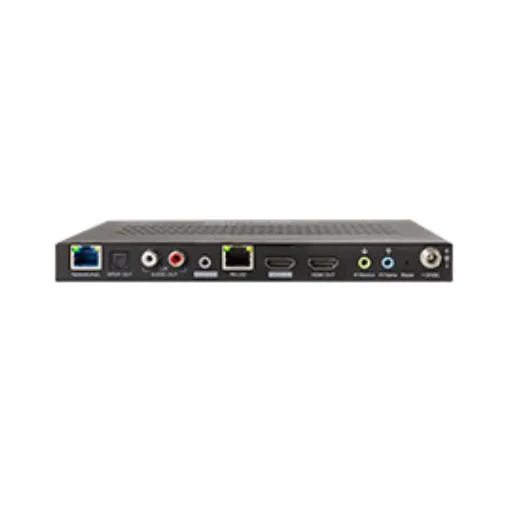

B-900-MOIP-4K-TX-2AC

Especificaciones:

Resolución de transmisión de video: Up to 4K HDR@30Hz 4:2:2 | 4K HDR@30Hz 10 bit | 4K UHD@30Hz 4:4:4 8bit

Plus Full 1080p HD and lower resolution including interlaced video formats

Resolución de recepción de video: HDR Content when available 4K HDR@30Hz 10 bit

Integrated scaler to support 4K|HDCP 2.2 on 1080p|HDCP 1.4 displays

Características de video:

Interlaced Video Support: Yes

HDR Support: HDR 20/24Hz

Video Wall Support: Yes, 2x2, 3x3 and 4x4

Video Compression: Visually Lossless

Max. HDMI Bandwidth: 8.91Gbps

Max. HDMI Pixel Clock: 297MHz

Conexiones HDMI: IN: 1 x 19 pin Tipo A Hembra, OUT: 1 x 19-pin Tipo A Hembra

Formatos de audio soportados: 2CH PCM, LPCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby True HD, Dolby Digital Plus, DTS, DTS-HD Master Audio, DTS NeoX, Dolby Atmos, DTS:X

Entradas y salidas de audio:

Stereo Injection/Audio In: 1 x Mini Stereo 3.5mm Jack (replaces HDMI In audio)

Stereo Breakout/Audio Out: 1 x L/R RCA Audio (Extraction audio only when 2ch audio present)

Analog Audio In: Yes

Analog Audio Out: Yes

Frecuencia de señal IR: 20-60 kHz

Entradas IR: 1 x 3.5mm Stereo (blue), 12V

Salidas IR: 1 x 3.5mm Stereo (green)

DipSwitch 1 Controls: IR RCVR PWR OFF/ON

DipSwitch 2 Controls: Serial/RS-232 DTE/DCE

Puertos RS232: 1 x RJ-45 (EIA-561)

Carateristicas de red: Requiere switch administrable: Capa 2 administrable w/ IMGP Snooping

Req. Port Throughput: 1Gbps

Max. Distance from Switch: 100m (328 ft)

Compatible Category Cable: CAT 5E/6/6A/7

Puertos ethernet: 1 x RJ45 (T568B) LAN PoE

Temperatura de operación: 32 - 104°F / 0 - 40°C

Fuente de poder: 12VDC, 2A (accesorio opcional)

Dimensiones(An x Al x Pr): 8.2"(20.8cm) x 0.83"(2.1cm) x 6.14"(15.5cm)
